Setting up Card Formats PremiSys - Allegion Locks

Setting up Card Formats for PremiSys Doors and Allegion Locks

How to setup a card format for Doors in Premisys

  1. 1. Click on tasks -> Hardware Configuration.
  2. 2. Click on the access settings tab and select the card format folder.
    1. a. This will display all of the available card formats and if they are active or not.
  3. Double click on the desired card format and make sure it is setup the correct way.
  4. Check the Active box which will allow you to then select the card format under the door properties.
  5. Click on the hardware tab and select the doors folder to edit the door and add the desired format.
  6. Double click on the door you want to make the change and select the card format tab.
  7. Make sure the active card format is checked and click ok.
  8. Right click and select download controller on the appropriate controller a box will pop up click download.

How to setup a card format for Allegion NDE/LE Locks

  1. 1. Click on tasks -> Hardware Configuration.
  2. 2. Click on the ENGAGE Hardware tab and double click on the appropriate door you are trying to setup whether it is an offline or online door. (NOTE: Offline is a wifi lock, Online is a lock using IP Gateway)

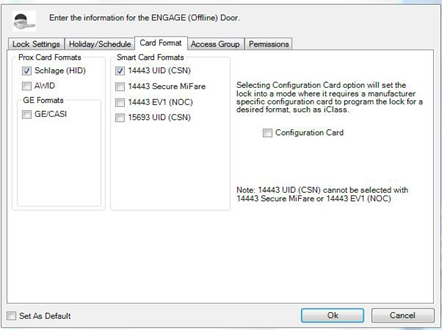

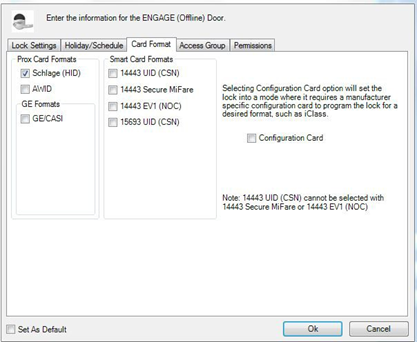

  3. 3. Click on the card format tab and select the desired format then click ok.
  4. 4. Once this is complete go into the navigator and double click the record you want to edit.
  5. 5. Click on the edit card under card configuration and select the ENGAGE tab.

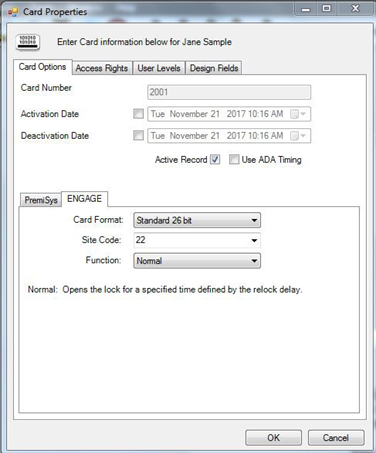

    1. a. Here you will select the appropriate format and setup the correct site codeOnce you have setup the card with the correct settings click ok and save the record.
  6. Once you have setup the card with the correct settings click ok and save the record.
  7. If you are using an offline lock, connect to it through the engage app and issue an update from server. If using the offline solution with an IP gateway you will need to wait for a Door File Update Successful transaction to come through.

Standard 26

HID Corporate 1000 35 Bit

HID 37 Bit

HID 10302 37 Bit

IDentiSmart XceedID 32 Bit

IDenticard 37 Bit



Standard 26 Bit Setup ( H10301)

Readers that work with Standard 26 Bit Cards

               MT11

                     MT15

               PR10Prox

Readers that don't work with Standard 26 bit

              SM10 Smart

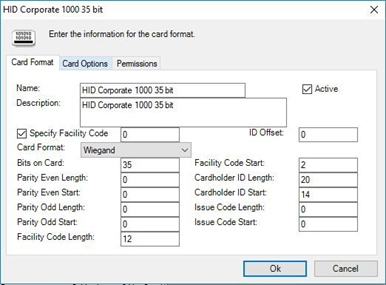

HID Corporate 1000 35 Bit Setup

Readers that work with HID Corporate 1000 Cards

               MT11

                     MT15

               PR10Prox

Readers that don't work with HID Corporate 1000 Cards


              SM10 Smart

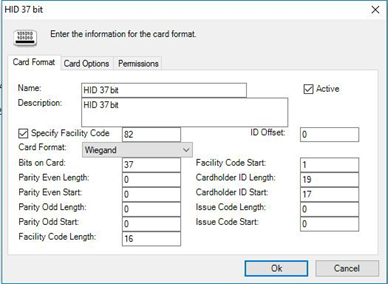

HID 37 Bit Setup (H10304)

Readers that work with HID 37 Bit Cards

               MT11

                     MT15

               PR10Prox

Readers that don't work with HID 37 Bit Cards



              SM10 Smart

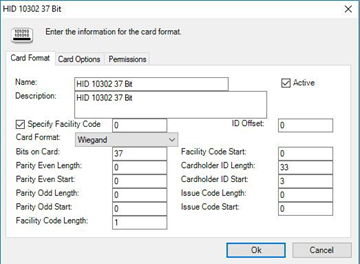

HID 10302 37 Bit Setup

Readers that work with HID 10302 37 Bit Cards


               MT11

                     MT15

               PR10Prox

Readers that don't work with HID 10302 37 Bit Cards




              SM10 Smart

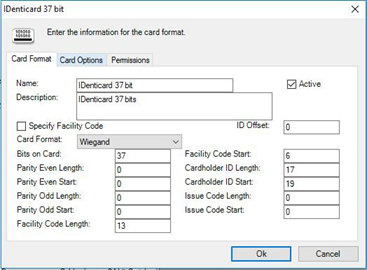

Identicard 37 Bit Setup

Readers that work with IDenticard 37 Bit Cards

               MT11

                     MT15

               PR10Prox

Readers that don't work with IDenticard 37 Bit Cards




               SM10 Smart

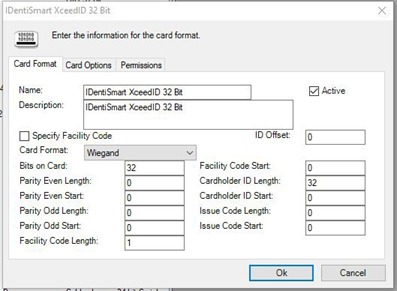

IDentiSmart XceedID 32 Bit (MiFare) Setup

Readers that work with IDentiSmart XceedID 32 Bit Cards

                   MT15

              SM10 Smart

Readers that don't work with IDentiSmart XceedID 32 Bit Card

               MT11

             PR10 Prox

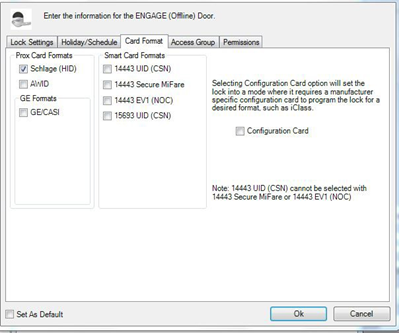

Standard 26 Bit Wireless Door Card Format Settings

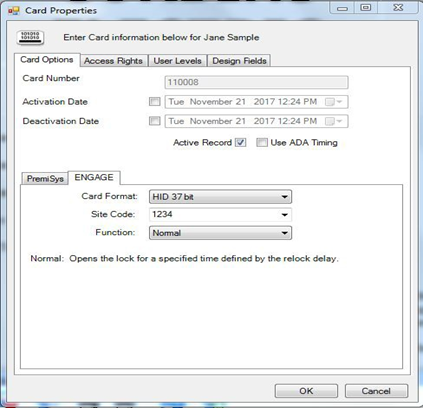

User Card Configuration Setup

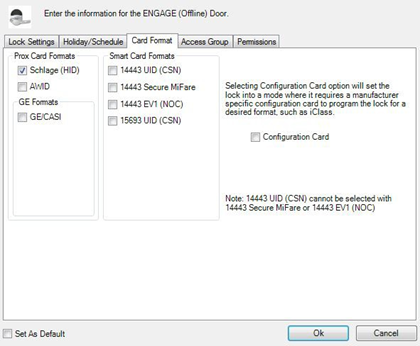

HID Corporate 1000 35 Bit Wireless Door Card Format Settings

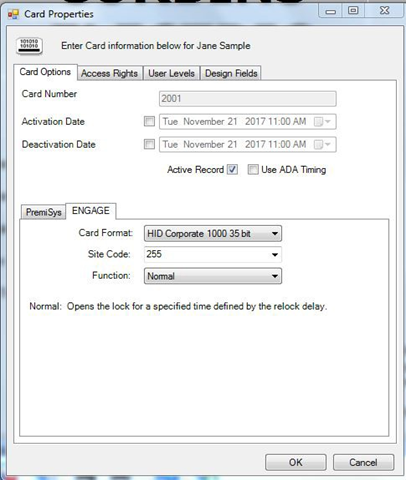

User Card Configuration Setup

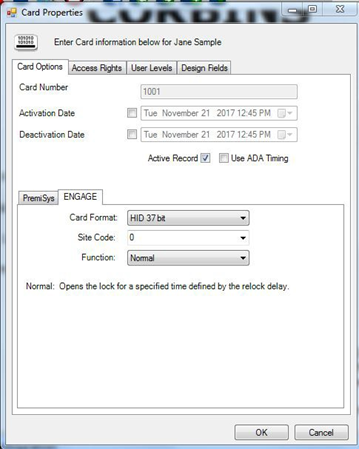

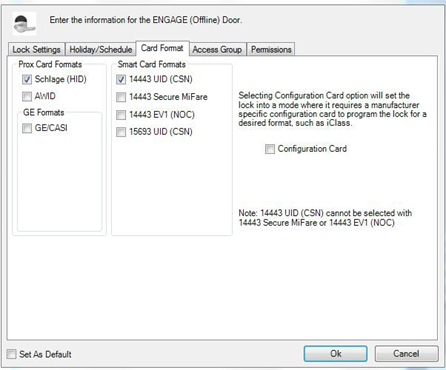

HID 37 Bit Wireless Door Card Format Settings

User Card Configuration Setup

HID 10302 37 Bit Wireless Door Card Format Settings

 User Card Configuration Setup

IDenticard 37 Bit Wireless Door Card Format Settings

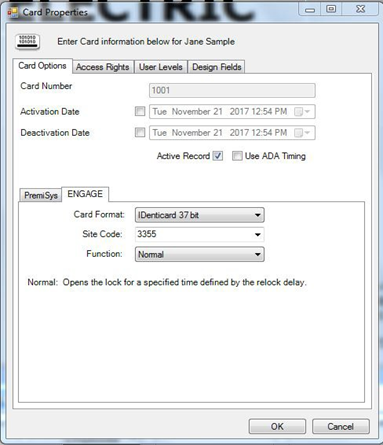

  User Card Configuration Setup

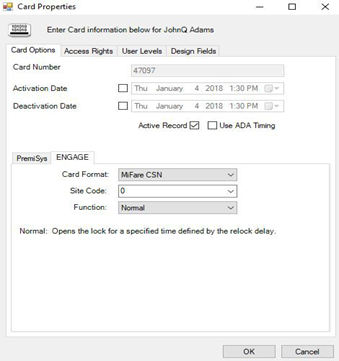

IDentiSmart XceedID 32 Bit (MiFare) Wireless Door Card Format Settings

User Card Configuration Setup
